Description:

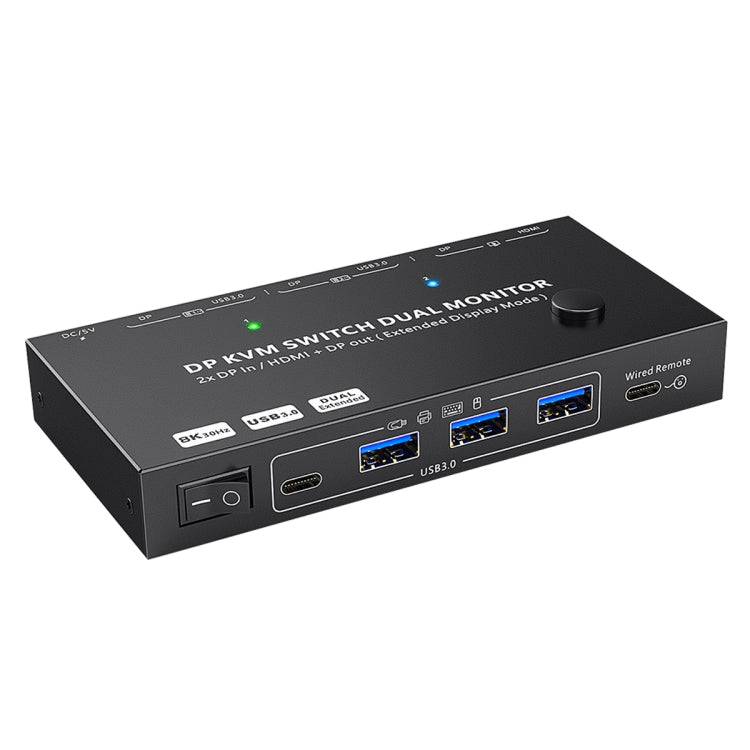

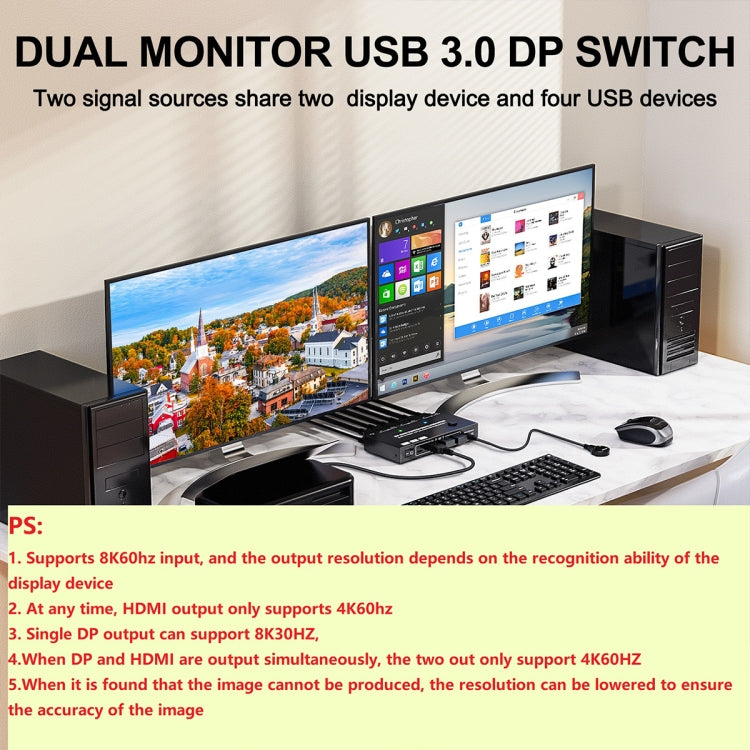

This USB and DisplayPort dual-monitor KVM switch can control 2 desktop or laptop computers with a set of wired or wireless keyboards, mice, and 2 monitors. Supports extended display mode or duplicate display mode. This product is the best KVM switch to improve your work efficiency and make your workspace tidier. It is also a high-quality choice for work and home.
Feature:
1. Supports free switching between DisplayPort video source and USB data
2. The input port is compatible with DP 1.4a (the interface depends on the purchased version), and the output port includes DP1.4 and HDMI2.1
3. Support video resolutions up to 8K 30Hz, 4K 60HZ (4:4:4)
4. Support 1 channel DP video output, 2 channels video output (HDMI+DP), the two outputs can be in expansion or copy mode
5. Adaptive EDID, able to adapt to various complex environments

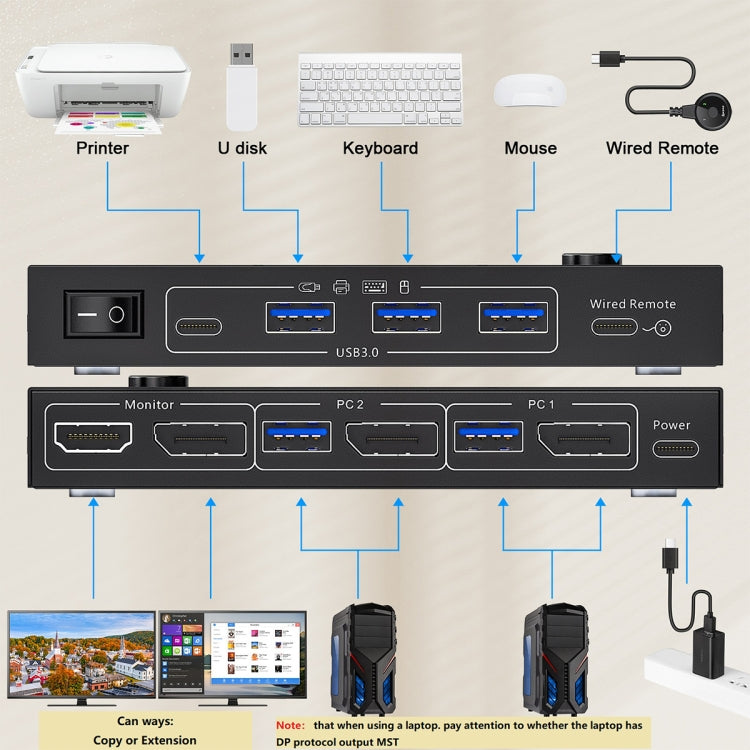

6. Support USB devices such as HUB, U disk, SSD, printer, etc.

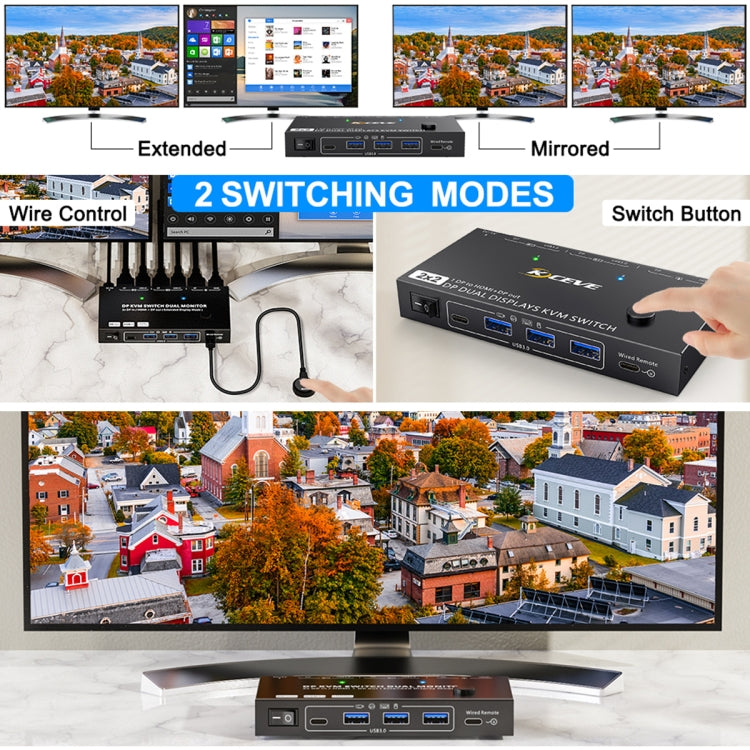

7. Switching mode: physical button, wire control
8. High compatibility, can automatically match signal sources and display devices
9. Built-in automatic adjustment system, the image is smooth, clear and stable
10. Built-in ESD protection system
11. Easy to install, plug and play
Parameter:
1. Input standard: DP1.4
2. Output standard: DP1.4, HDMI2.1, HDPC2.3
3. Resolution range: 7680x4320 30Hz, 3840x2160 120Hz/60Hz, 3440x1440 144Hz/120Hz, 2560x1440 144Hz/120Hz, 1920x1080 60Hz/120Hz (depending on the system and connected hardware)
4. Input connector: DisplayPort interface
5. Output connector: display port interface, HDMI interface

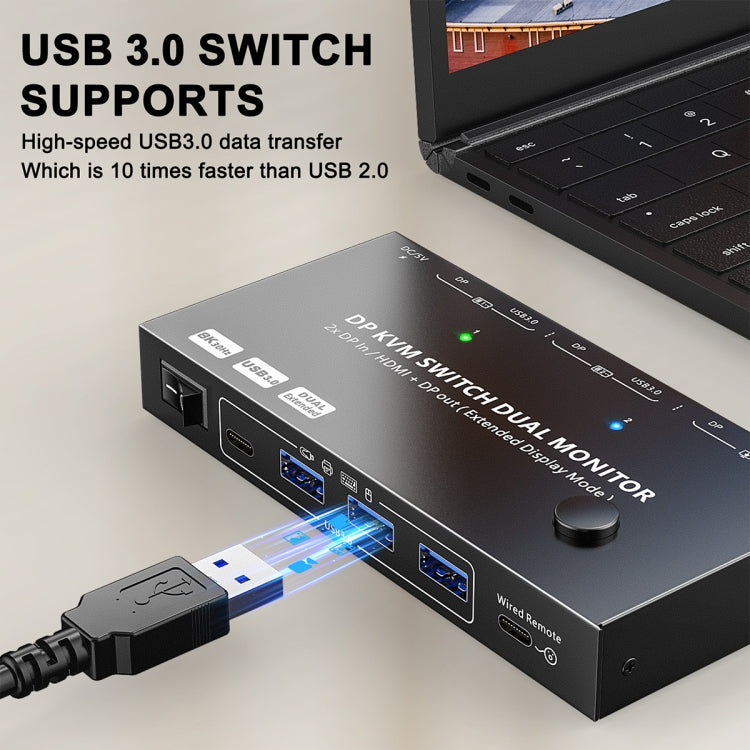

6. Interface protocol: USB3.0 (compatible with USB2.0)
7. PC input: 2xUSB-A
8. Output: 3xUSB-A, 1xUSB-C (USB3.0)
9. Other power supplies: USB power supply (DC 5V optional)
10. Power consumption: 6W (Max)
11. Working temperature: -5 degrees Celsius - +70 degrees Celsius
12. Working humidity: 5%-90%

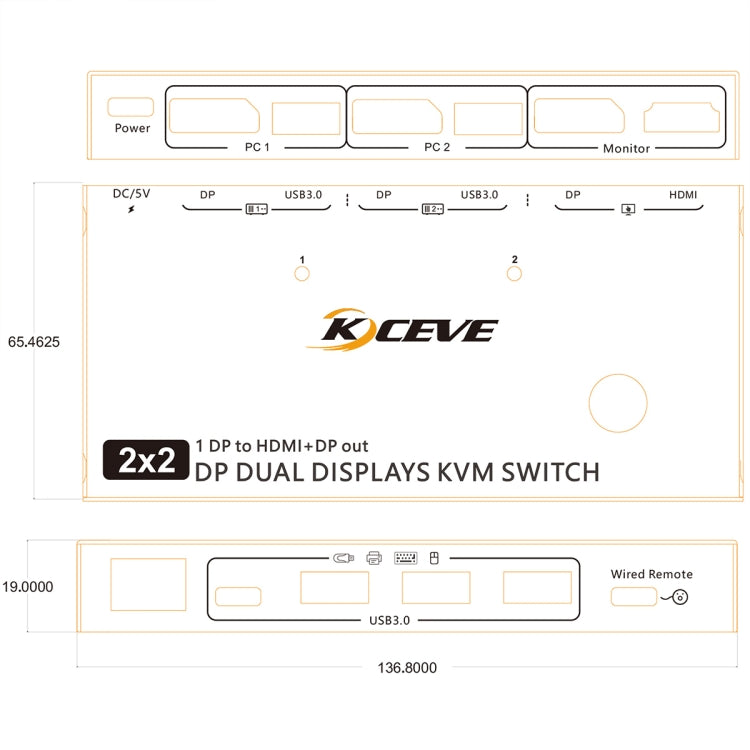

13. Product size: 140 x 65 x 18mm

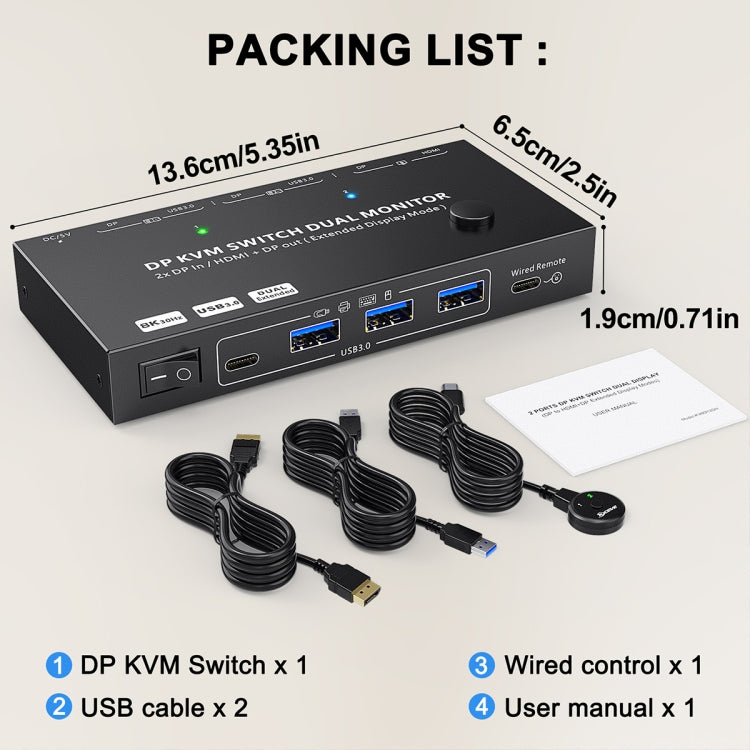

Package list:
- DP KVM switch x 1
- USB cable x 2
- Wired remote control x 1
- Instruction manual x 1
This USB and DisplayPort dual-monitor KVM switch can control 2 desktop or laptop computers with a set of wired or wireless keyboards, mice, and 2 monitors. Supports extended display mode or duplicate display mode. This product is the best KVM switch to improve your work efficiency and make your workspace tidier. It is also a high-quality choice for work and home.
Feature:
1. Supports free switching between DisplayPort video source and USB data
2. The input port is compatible with DP 1.4a (the interface depends on the purchased version), and the output port includes DP1.4 and HDMI2.1
3. Support video resolutions up to 8K 30Hz, 4K 60HZ (4:4:4)
4. Support 1 channel DP video output, 2 channels video output (HDMI+DP), the two outputs can be in expansion or copy mode
5. Adaptive EDID, able to adapt to various complex environments
6. Support USB devices such as HUB, U disk, SSD, printer, etc.
7. Switching mode: physical button, wire control
8. High compatibility, can automatically match signal sources and display devices
9. Built-in automatic adjustment system, the image is smooth, clear and stable
10. Built-in ESD protection system
11. Easy to install, plug and play
Parameter:
1. Input standard: DP1.4
2. Output standard: DP1.4, HDMI2.1, HDPC2.3
3. Resolution range: 7680x4320 30Hz, 3840x2160 120Hz/60Hz, 3440x1440 144Hz/120Hz, 2560x1440 144Hz/120Hz, 1920x1080 60Hz/120Hz (depending on the system and connected hardware)
4. Input connector: DisplayPort interface
5. Output connector: display port interface, HDMI interface
6. Interface protocol: USB3.0 (compatible with USB2.0)
7. PC input: 2xUSB-A
8. Output: 3xUSB-A, 1xUSB-C (USB3.0)
9. Other power supplies: USB power supply (DC 5V optional)
10. Power consumption: 6W (Max)
11. Working temperature: -5 degrees Celsius - +70 degrees Celsius
12. Working humidity: 5%-90%
13. Product size: 140 x 65 x 18mm
Package list:
- DP KVM switch x 1
- USB cable x 2
- Wired remote control x 1
- Instruction manual x 1
Specification:
| Package Weight |
|
