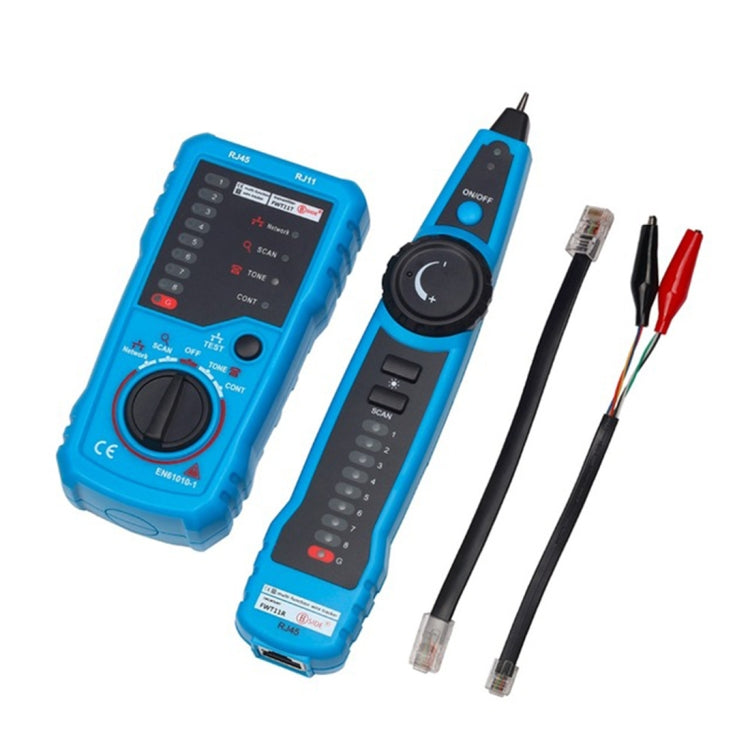

1. This instrument is a multi-functional handheld cable testing tool. It has wide application with reinforced cable types and multiple functions.
2. It is a necessary testing tool for telecommunication engineering, wiring engineering and network maintenance person.
3. Work perfect when RJ11/RJ45 cable is on power

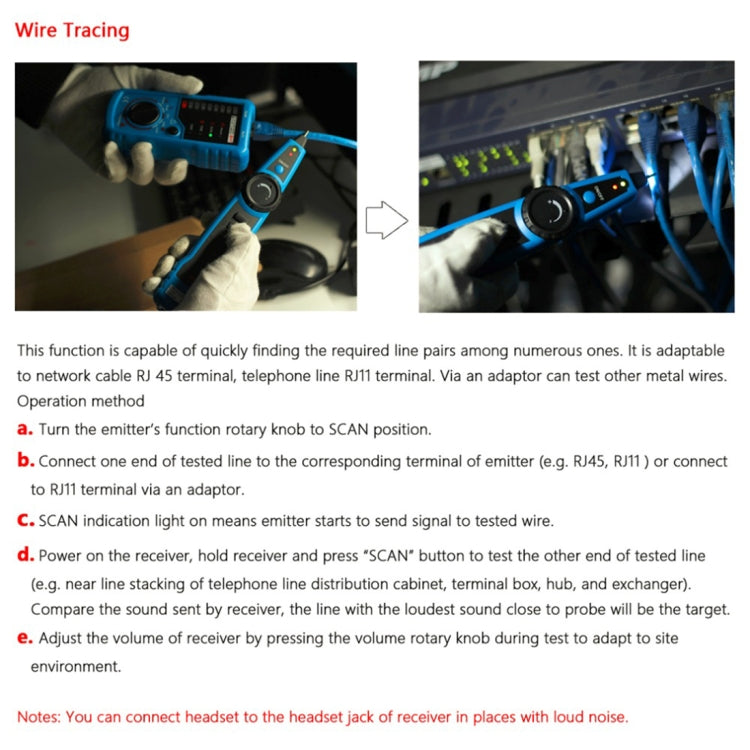

4. Wire Tracing: Trace RJ11, RJ45, cables or other metal wire (via adapter).
5. Easy and fast to locate the break point without opening the wire's cover.

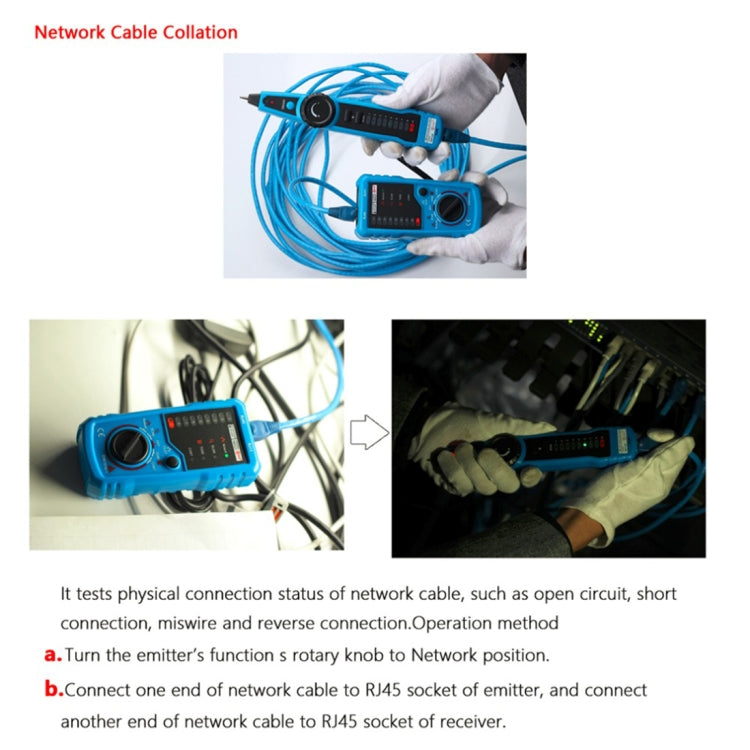

6. Network cable collation: Judge short-circuit, breaking circuit, open circuit and crossing.
7. Test line level, positive and negative polarity.
8. Status of telephone line checking: Test the working status of telephone line (idle, ringing, and off-hook) and judge TIP and RING line.
9. Check wire continuity.

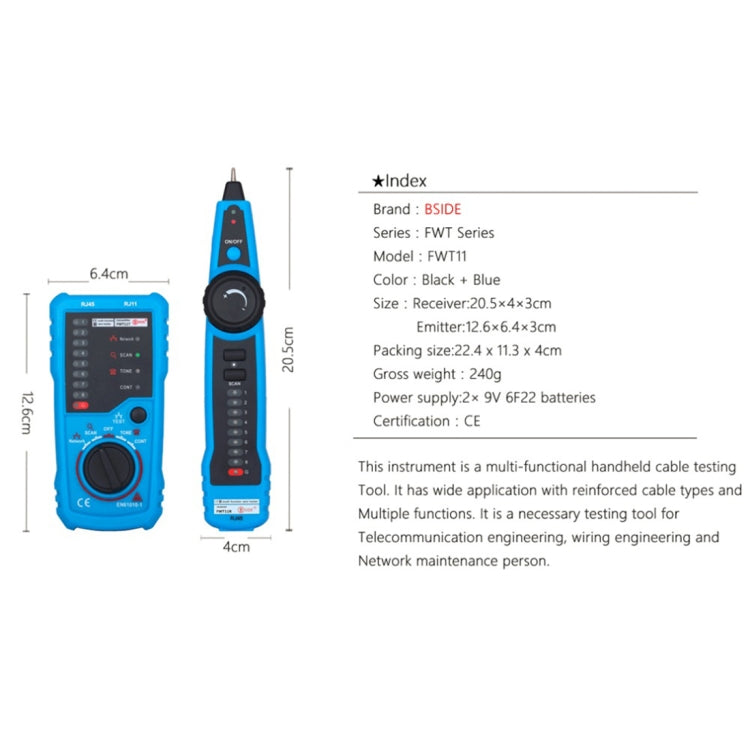

Specification:
| General |
| Size |
Receiver: 20.5*4*3cm, Emitter: 12.6*6.4*3cm |
|
| Package Weight |
| One Package Weight |
0.28kgs / 0.62lb |
| One Package Size |
22.2cm * 11.3cm * 4cm / 8.74inch * 4.45inch * 1.57inch |
| Carton Weight |
9.47kgs / 20.88lb |
| Carton Size |
40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch |
| Loading Container |
20GP: 740 cartons * 30 pcs = 22200 pcs
40HQ: 1719 cartons * 30 pcs = 51570 pcs
|
|
