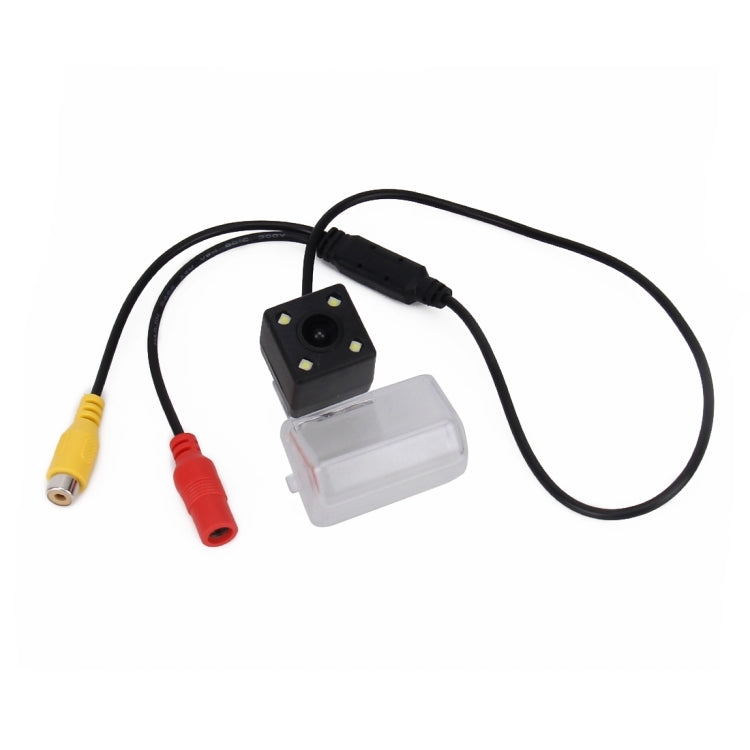

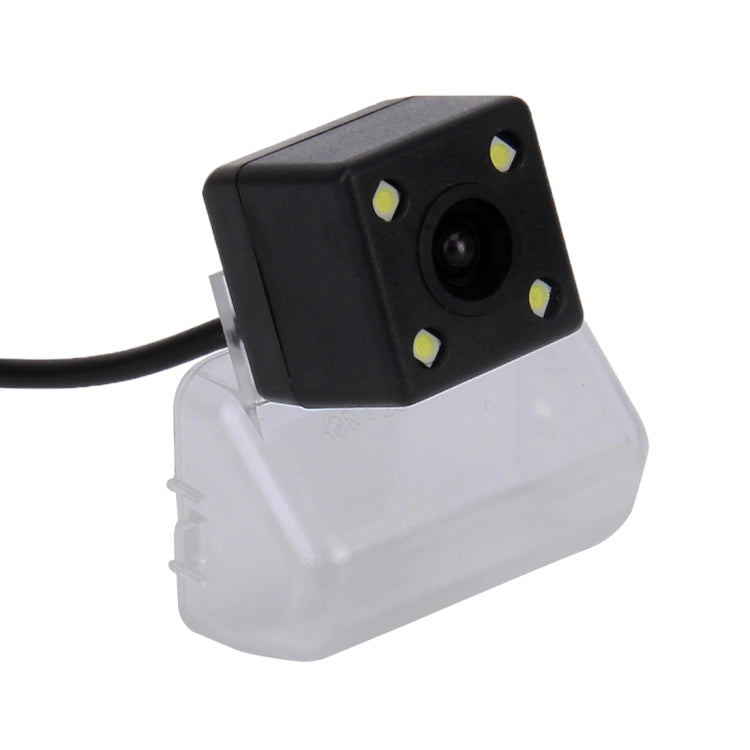

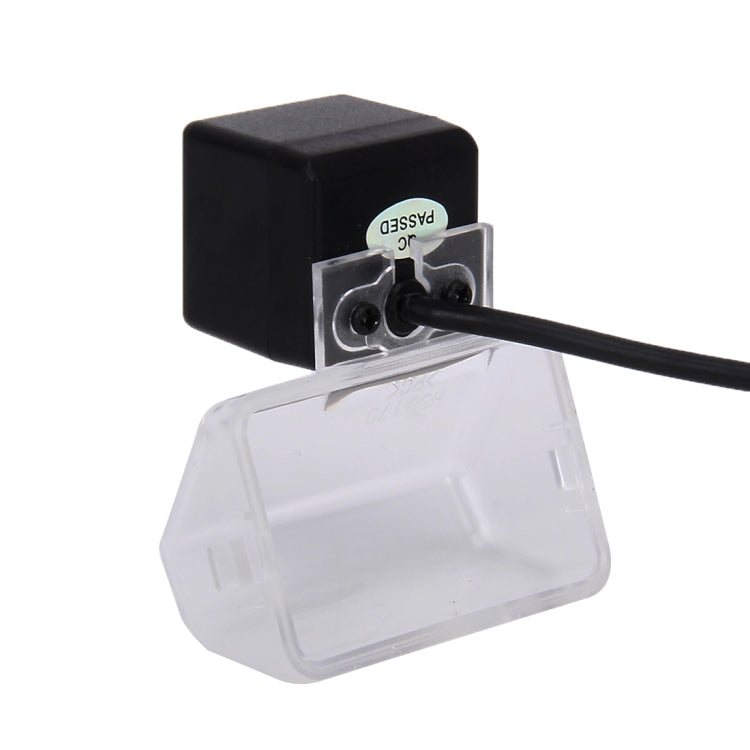

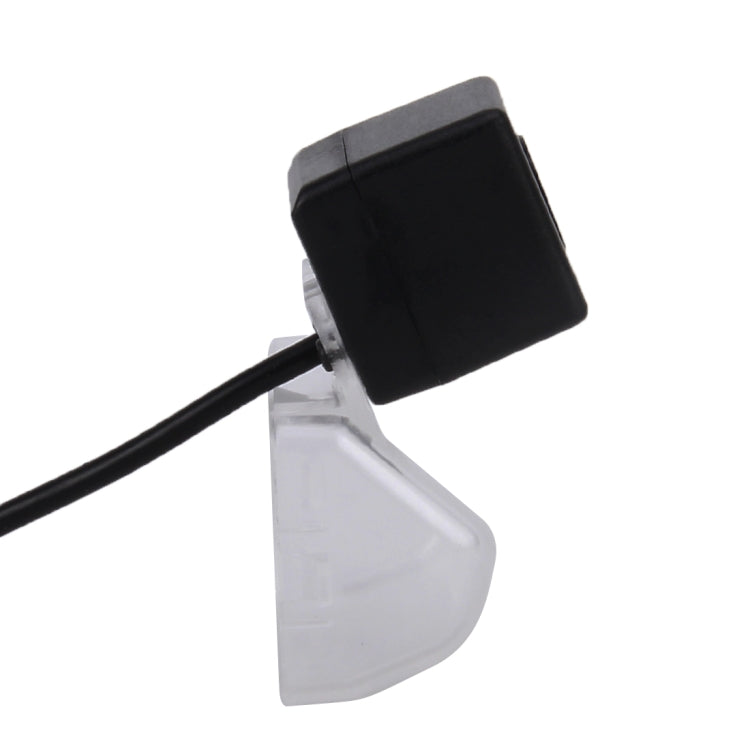

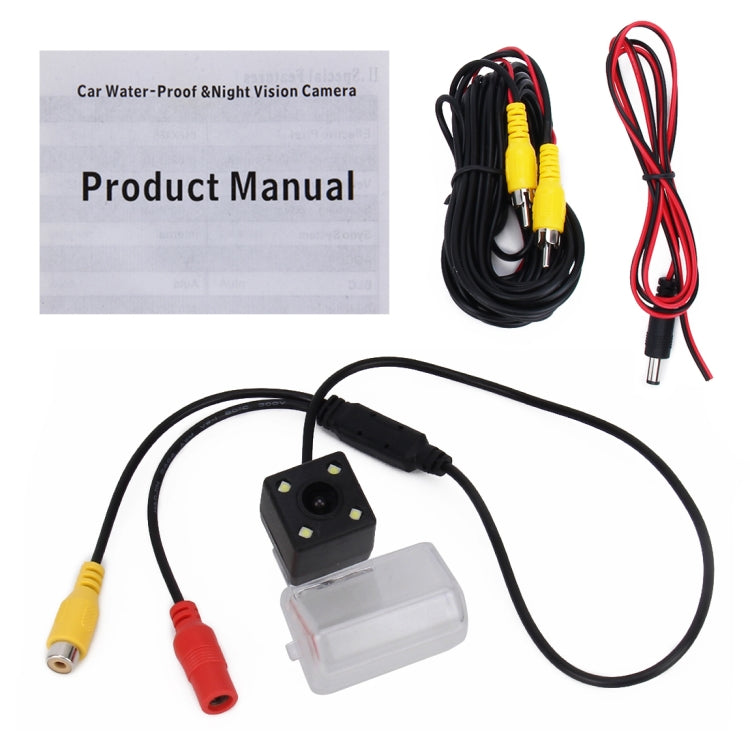

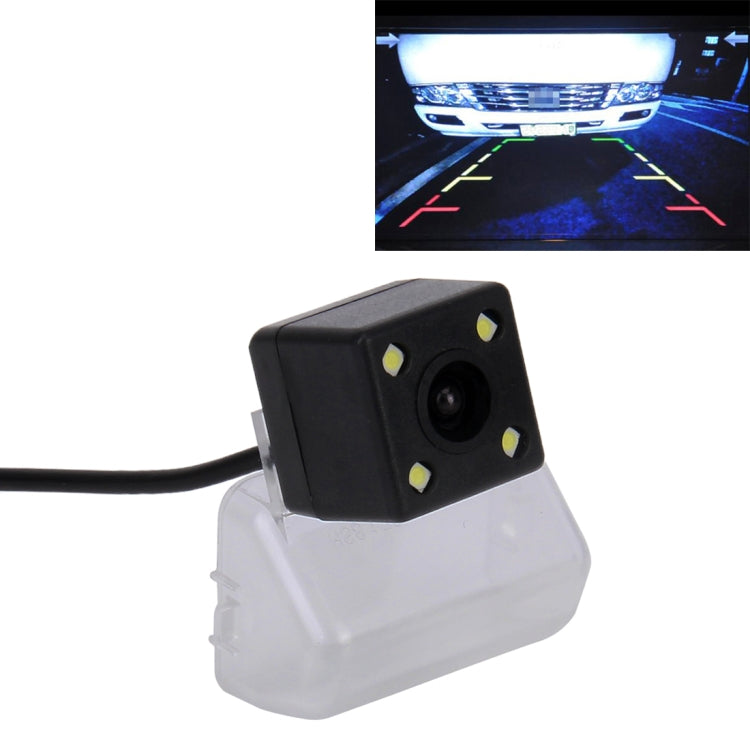

656×492 Effective Pixel HD Waterproof 4 LED Night Vision Wide Angle Car Rear View Backup Reverse Camera for 2012 Version Mazda CX-5, Mazda CX-5

Designer: HoMEdemic™

$14.62

Mazda CX-5
1. Effective pixel: 656*492
2. Horizontal sync frequency: 15625KHz
3. Vertical sync frequency: NTSC 60HZ
4. Scanning system: 2:1 interlace
5. Sync system: internal
6. AGC: Auto
7. BLC: Auto
8. Resolution: 480 TV lines
9. S/N ratio: more than 48dB
10. Current consumpition: no more 150mA

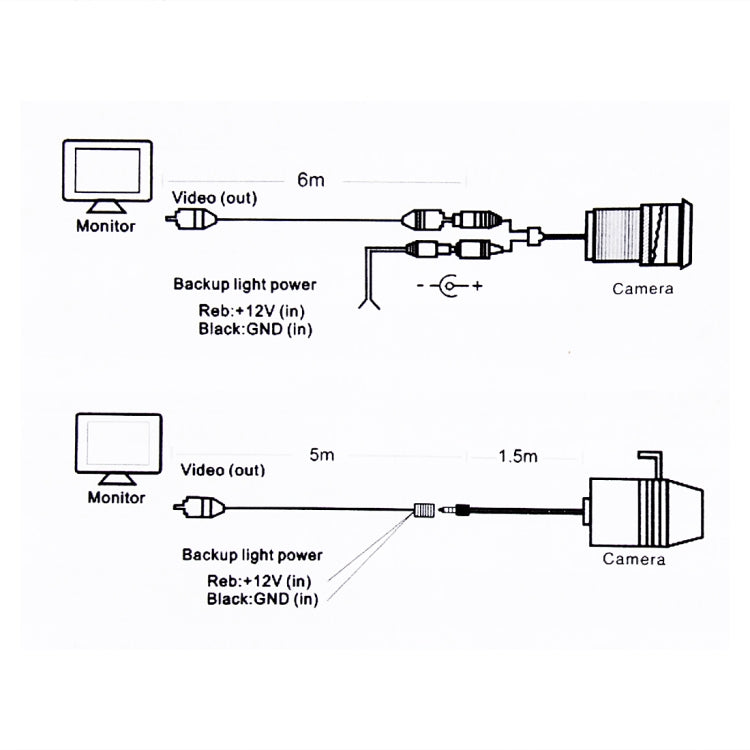

11. Power supply: DC 12V+-10%

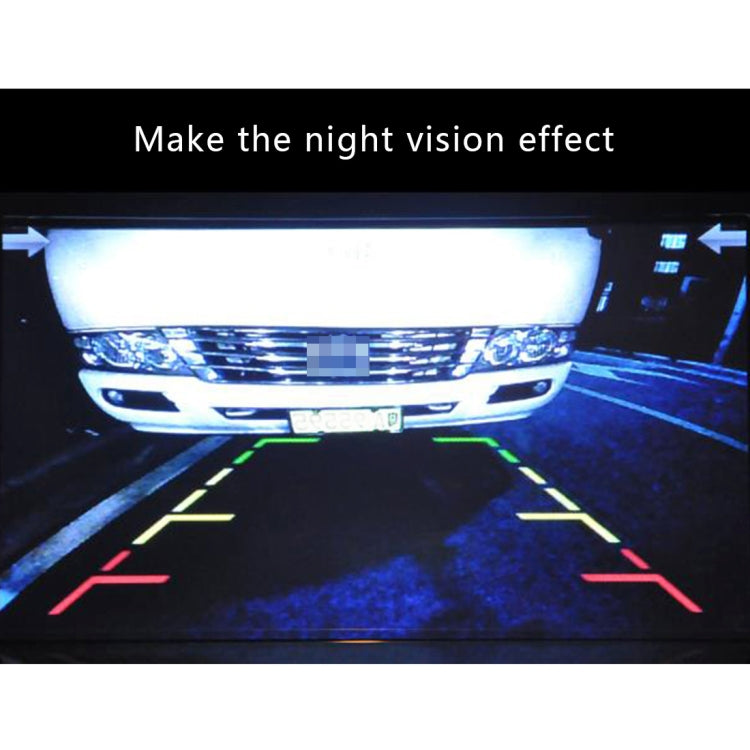

12. Car backup camera, perfectly solve the issue of bad car rear view effect, high solution backup rearview camera with 4 night version LED lights


Specification:
General
Compatible with
Mazda:  CX-5
Types Rear View Camera

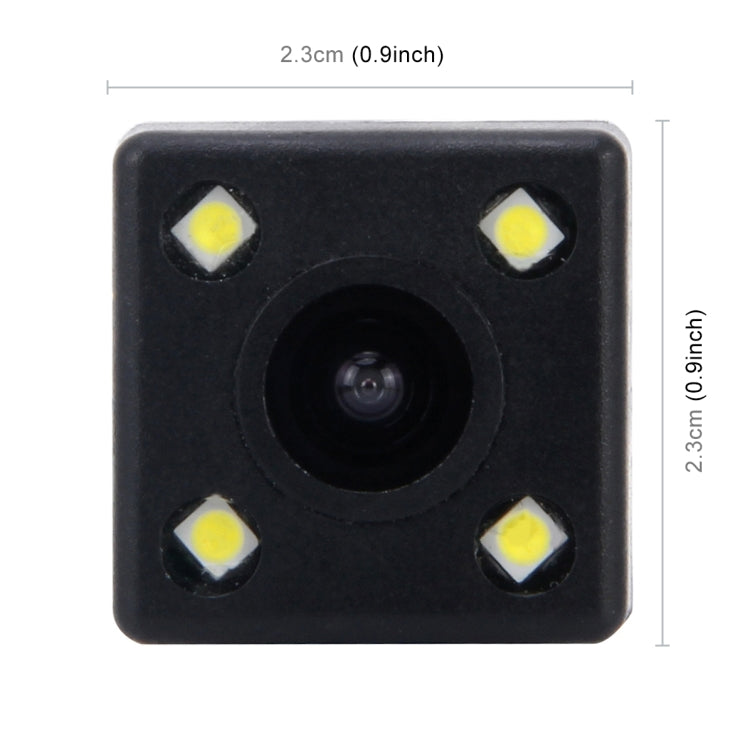

Size 23*23*23mm
Weight 45g
Camera
Scanning System 2:1 Interlaced
Lens Angle 170 Degrees, 120 Degrees
Environment
Working Temperature -30 - 75 Degree Celsius
Storage Temperature -40 - 95 Degree Celsius
Operating Humidity RH 95 Percent MAX
Storage Humidity RH 95 Percent MAX
Package Weight
One Package Weight 0.18kgs / 0.40lb
One Package Size 13cm * 8cm * 7.5cm / 5.12inch * 3.15inch * 2.95inch
Qty per Carton 70
Carton Weight 13.10kgs / 28.88lb
Carton Size 51cm * 36cm * 37cm / 20.08inch * 14.17inch * 14.57inch
Loading Container 20GP: 392 cartons * 70 pcs = 27440 pcs
40HQ: 911 cartons * 70 pcs = 63770 pcs
